Video Event Extractor.

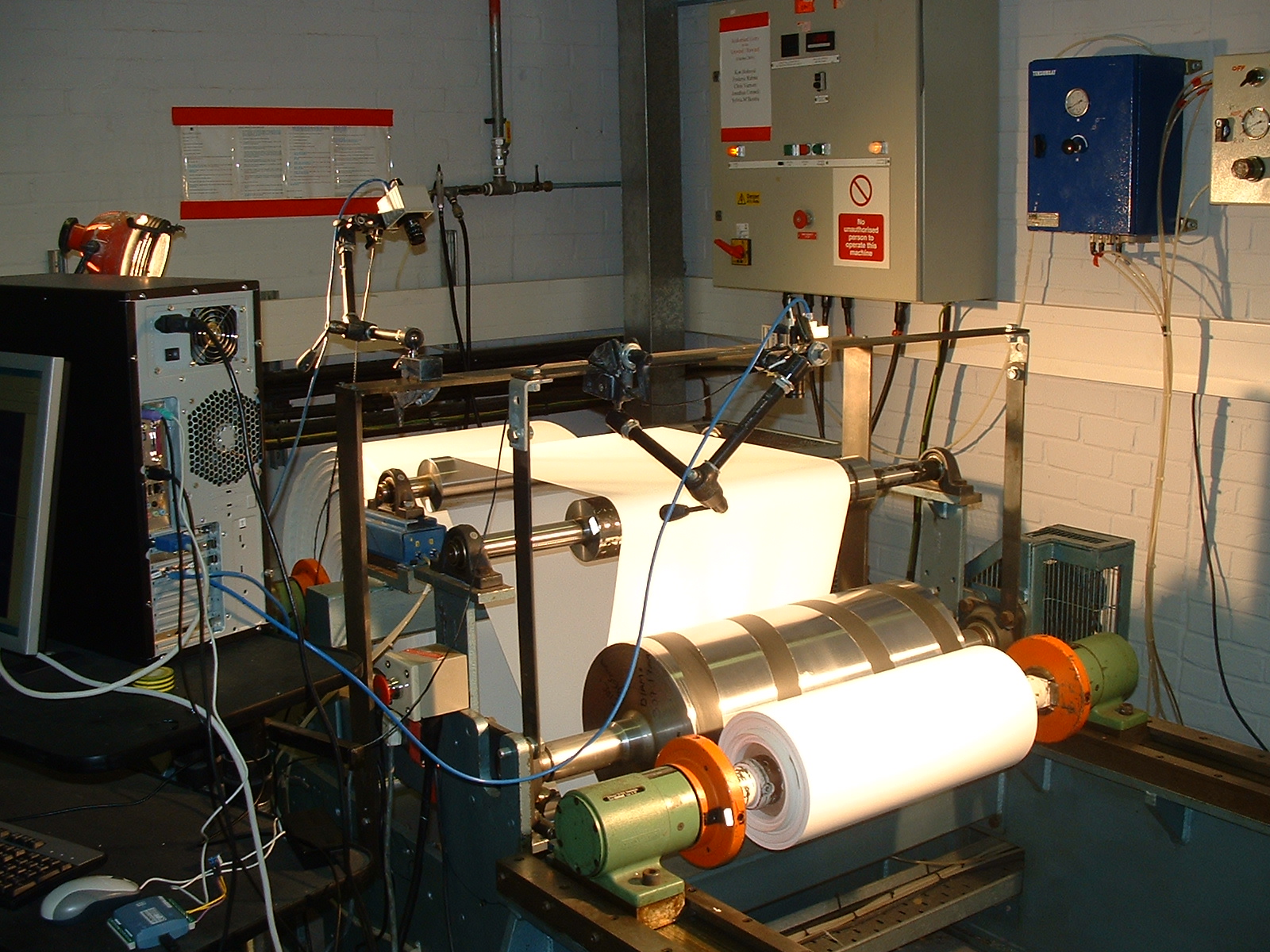

  • For paper break monitoring.
  • Bottling lines jam monitoring.
  • Pharmaceutical.
  • Packaging lines.
  • Printing lines.
  • Long time recording.
  • Multiple cameras.
  • Compatible with GigE Vision, 10 GigE Vision, USB3 Vision, Camera Link, CoaXPress and ONVIF Cameras.

Features

  • Continuous recording into a rolling buffer.
  • Upon receipt of trigger, module will extract Relevant Video to a video file (MP4/AVI/SEQ) based on the pre and post settings.
  • JPEG compression for optimized recording time.
  • Record and monitor while compressing and exporting.
  • Automatic export to a specific directory.

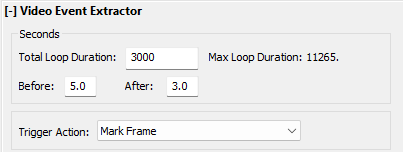

Set up time duration and trigger

  • Choose duration for before and after receving the trigger.
  • Set the total loop duration.
  • Select trigger action.

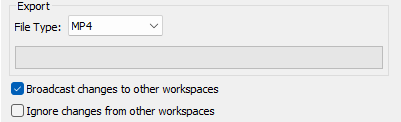

Set up export

  • Select file type for exported video (MP4/AVI/SEQ).
  • Option to broadcast changes to other workspaces.
  • Option to ignore changes from other workspaces.

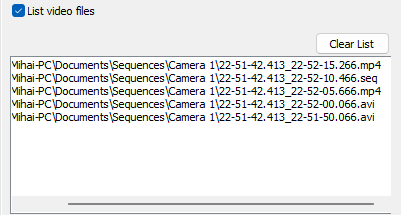

View exported files

  • Show list of exported videos.
  • Double click on file name to launch a player.

Accessories
