September 19th 2012 - Montreal, Canada

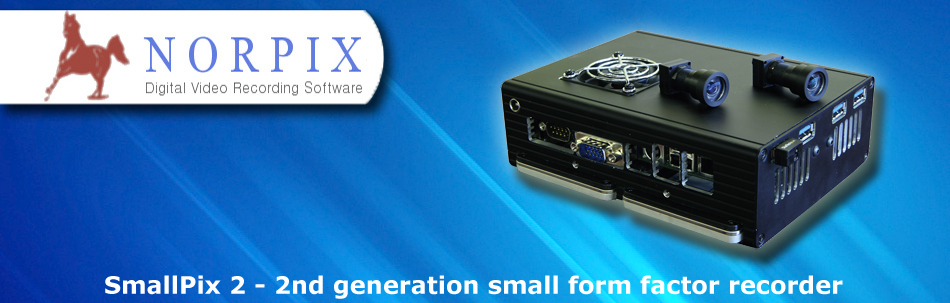

SmallPix 2 - 2nd generation small form factor recorder

Features:

  • Captures data from USB3, Gige Vision or Firewire 1994a/b cameras.
  • Ideal for outdoor use requiring lightweight device that can capture over the limits of a laptop.
  • Compatible with StreamPix and TroublePix.
  • Can operate with 12V battery.

Technical Specifications:

  • Dimensions: 169 x 125 x 52mm.
  • Mass: Including 2 SSD drives = 1 kilogram.
  • Power consumption: 90 Watts.
  • Power: 9 ~ 24V DC Input.
  • M/B: Intel QM67 Express chipset, Core i7-2.0 GHz, 6 MB Cache, 4 GB DDR3 1333 MHz, VGA, Onboard Audio.
  • Camera Interface: 5 x GigE or 4 x USB3.0 (dual bus).
  • I/O: 8 x Digital I/O's (4in / 4out).
  • Storage: 2x 2.5" slots for dedicated SSD or mechanical disks.
  • OS: Windows Embedded Standard 7.
  • Software: StreamPix Multi-Camera Recording Software.
  • Chassis: Anodized aluminum.

About StreamPix

As NorPix's flagship software product, StreamPix 5 has become the ultimate Digital Video Recording software. With its state-of-the-art user interface, users may view, control and acquire from single or multiple cameras simultaneously. StreamPix 5 provides a complete management console for cameras, simplifying the setup, control and acquisition from any number and type of camera.

About NorPix

NorPix is a developer of high-speed digital video recording software specializing in single or multiple camera acquisition. Our software provides a wide selection of features such as time stamping, synchronization, audio and data acquisition and much more. Our software and systems are used throughout a wide range of applications including special effects, scientific research, life science, geo-mapping and military applications.

For more information
Luc Nocente
ln@norpix.com
1751 Richardson, suite 6117
Montreal, Canada
H3K 1G6
Tel: 514-846-0009 ex: 22.

www.norpix.com
