NorPix StreamPix station 625/1250: High Speed Digital Recording Station.
StreamPix and TroublePix operate at their best using state of the art StreamPix Station 625 and 1250 computers. These fine tuned computers are assembled in our labs with carefully selected components that will guarantee ultimate performance as well as image recording for hours with a no frame drop guarantee.
StreamPix Stations are available as desktop or compact desk systems, rack mount units or portable lunch box types.
Single or multiple camera recording and playback can be handled with these workstations. Among the supported cameras:

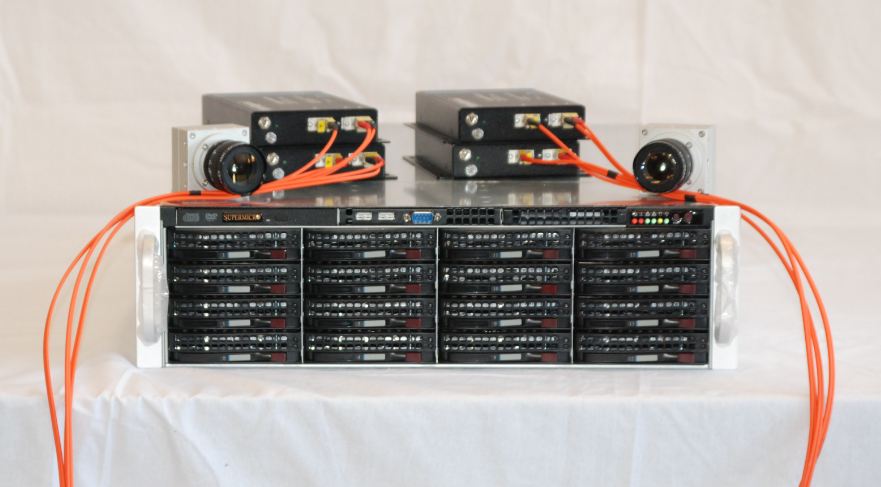

Dual recording station with fiber optical repeaters
- Basler A504K, A504KC, A406K, A406KC.
- Mikrotron MC1310, MC1311, MC1362, MC1363.
- Photon Focus MV2-D1280-640, VDS CMC-1300.
- Optronis CL600x2.
- IDT M3.
- Baumer HX 13.
StreamPix Station 625:
StreamPix Station 625 can handle the following performance with monochrome or color high speed megapixel cameras:
NorPix StreamPix Station
- 500 fps x 1280 x 1023 x 8 bits.
- 1250 fps x 1024 x 512 x 8 bits.
- 1850 fps x 640 x 480 x 8 bits.
- 1992 fps x 1280 x 256 x 8 bits.
- Will record at 8000 fps x 1280 x 60 x 8 bits monochrome using image aggregation.
- Will record at 8000 fps x 240 x 200 x 8 bits monochrome using image aggregation.
- When frame rate exceeds 7,000 fps then we will use image aggregation.
- Compatible with Matrox Solios, Coreco X64 Xcelera, National Instruments NI 1429 and Bitflow Karbon.
- Record up to 400 minutes in uncompressed format to disk.
Portable PC Optronis
- Record up to 95 seconds with Windows 64 bits and 64 Gigabytes of RAM.
- 650 fps x 700 x 640 - JPEG real time compress.
- Ideal for troubleshooting applications requiring looping and Pre/Post triggering.
- IRIG-B or GPS time stamping for each image.
- All images are individually time stamped.
- Thumbnail viewer allows for fast scrolling and image search using time stamp.
- Compatible with all color bayer filters provided in StreamPix.
- Real time color bayer rendering for image preview while recording.

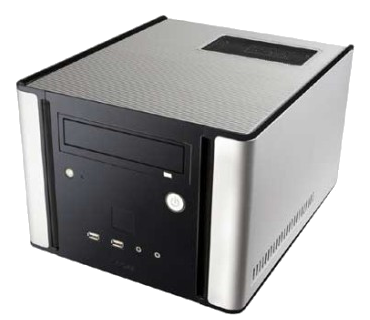

Small Form Factor
NorPix StreamPix Station 1250:
- 2 cameras x 500 frames per second x 1280 x 1024 x 8 bits monochrome or bayer color.
- Use a single computer.
- Record up to 80 minutes per camera.
Additional Features:
- Ideal for troubleshooting applications requiring looping and Pre/post triggering.
- IrigB time stamping for each image.
- All images are individually time stamped.
- Thumbnail viewer allows for fast scrolling and image search using time stamp.
- Compatible with all color bayer filters provided in StreamPix.
- Real time color bayer rendering for image preview while recording.
